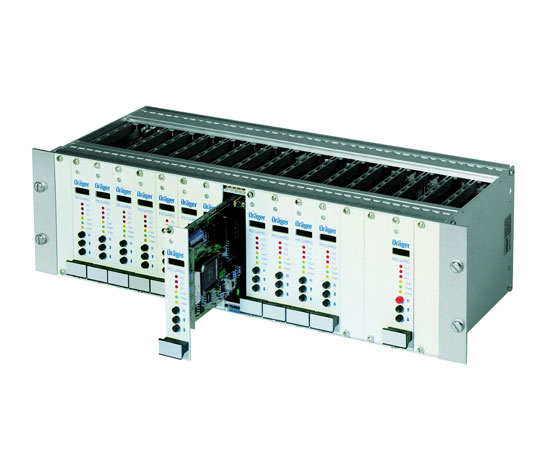

Control system Dräger REGARD

Simple configuration The modular construction of the Regard system ensures a clear system structure. The system can be configured manually through each individual card, as a whole or in groups through the master card, or for even more simplicity, via a usb connection to PC or laptop. Configuration can be saved, compared to find changes or conflicts, or reverted to original configured state. Established system The Regard product family includes single-channel and multi-channel cards, input and relay modules for mounting on DIN rails and communication cards and communication modules for linking with a PC or higher-ranking systems. There is the option to connect 4-20-mA transmitters, HART transmitters that communicate digitally and Polytron-SE-Ex sensing heads. The LEDs on the front plate of the cards provide information on alarm status and failure status. A display will show the current measured value. Measured values and alarm status can be transferred to linked systems via Modbus or Profibus. With more than 240,000 Regard inputs/outputs worldwide it is a well established system. Flexibility Regard control systems are flexible and can be adjusted to individual requirements. Conventional single-channel card systems are possible as well as multi-channel systems with markedly reduced installation costs. The visualisation of measured values and alarm states on a PC with the information transfer via Modbus can also be realised, as well as the integration in process control systems via the Profibus module.
